High voltage isolator switches are critical components in electrical power systems. Whether you’re an electrical engineer, technician, or procurement professional, understanding these devices is essential for selecting the right equipment for your power systems.
In this guide, we’ll explore the types, functions, and applications of high voltage isolator switches. We will also cover their operational mechanisms, safety features, and the importance of isolation during maintenance.
A high voltage isolator switch is a mechanical device used to disconnect parts of an electrical circuit. Mainly used for “isolating power supply, switching operation, connecting and disconnecting small current circuits”, switching devices without arc extinguishing function. These switches are used in high voltage transmission and distribution systems to prevent electrical hazards during repairs or upgrades.
A High Voltage Disconnect Switch works by opening mechanical contacts when it is turned off. This action creates a physical gap between parts of the circuit. The gap makes sure the system is completely de-energized and safe. The break is usually visible, so operators can easily see that the circuit is fully isolated from the power source.
High voltage isolator switches come in various types, each one being better suited for specific applications. There are different types of switches. You can classify them based on the material used for insulation, how they work, how they function, the voltage rating, how they are installed, and how the equipment is structured. Let’s break down the different types:

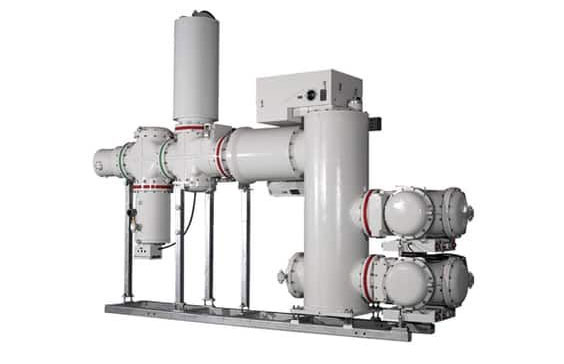

Working Principle: GIS uses SF6 gas (sulfur hexafluoride) as an insulating medium. The gas has high dielectric strength, preventing electrical arcing when the switch is in operation.
Applications: GIS are used in places where space is limited and high voltage is needed, like in urban grids and substations. These places need to be compact and very reliable.
Reliability & Standards Compliance: GIS meets the IEC 62271-102 standard, which makes sure it is safe and reliable in high-voltage environments.
Working Principle: VCBs utilize vacuum as the insulation medium. When the contacts open, the vacuum provides a medium that prevents arcing, ensuring the system remains safe.
Applications: These are used in high-frequency operations and high-performance power systems that require rapid switching.
Reliability & Standards Compliance: VCBs are designed to comply with IEC 62271-100, ensuring efficient and safe circuit protection.

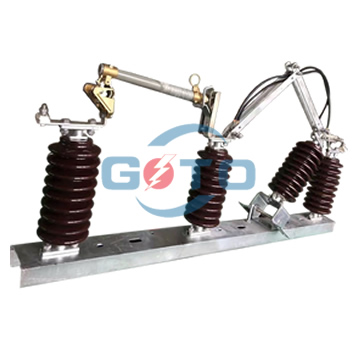

Working Principle: In air-insulated switches, air is simply used as the insulating medium. While not as compact as GIS, it is cost-effective and reliable for many applications.
Applications: Commonly used in low-to-medium voltage distribution systems and outdoor electrical equipment.
Reliability & Standards Compliance: These switches are designed to withstand environmental factors and meet IEC standards for outdoor installations.
Working Principle: These switches are operated manually. You usually use a lever or a handle to open or close the switch.
Applications: Manual isolator switches are best for systems with low operation frequency or where automation isn’t required.
Operational Aspects: Simple manual operation makes these switches ideal for smaller systems or locations where automated operation is unnecessary.
Working Principle: This switch is operated by an electric motor, which can be controlled remotely or through automated systems.
Applications: It is perfect for systems that need to be switched on and off a lot or that are controlled from a distance, especially in big or complicated electrical networks.
Operational Aspects: You can use it remotely, which means you can control the system from a distance.
Working Principle: Pneumatic operated switches rely on compressed air to operate the mechanism, allowing for precise control.
Applications: These switches are perfect for high-temperature environments or industrial settings where air-driven systems are preferable.
Operational Aspects: Pneumatic switches are perfect for harsh environments because they can be switched on and off automatically and with high precision.
Working Principle: A load break switch can stop the current while the system is under load. This makes it safe to use to stop the current flow without causing harm to the system.
Applications: Typically used in medium-voltage systems to safely break load currents while the system remains operational.
Reliability & Standards Compliance: Designed for use in power distribution systems and meets safety standards for load breaking.

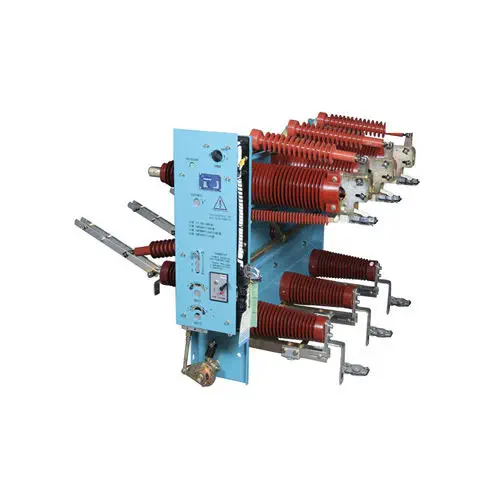

Working Principle: This switch is used with a fuse. If there is a problem, the fuse will disconnect the system to protect it.
Applications: This is often used in power distribution systems where it is very important to protect against overloads.
Reliability & Standards Compliance: The fuse ensures reliable operation under overload conditions and complies with international safety standards.
Working Principle: These switches are equipped with a grounding blade, allowing safe grounding during maintenance.
Applications: Used in substations to ensure equipment is grounded during maintenance.
Reliability & Standards Compliance: Meets international standards for grounding safety in high-voltage environments.
Applications: This is used in low-voltage electrical distribution systems. You often find it in residential or small commercial buildings.
Applications: Common in distribution networks, industrial plants, and medium-voltage substations.
Applications: This is very important for high-voltage transmission lines and large substations. It makes sure that the system is stable and safe.
Reliability & Standards Compliance: Complies with strict voltage and safety standards, ensuring operational integrity in high-voltage environments.
Applications: Installed inside buildings, these switches offer protection from internal environmental factors such as dust or moisture.
Applications: Designed for use in outdoor environments, these switches are built to resist environmental elements such as rain, snow, and heat.
Working Principle: The contacts in this switch separate in a vertical direction, making it ideal for high-current systems.
Applications: These are usually used in large power stations or for systems that use a lot of electricity.
Working Principle: The contacts break in the center, which helps distribute mechanical stress evenly.
Applications: This is used in systems that have access on both sides, especially in power systems that have a medium to high voltage.
One of the primary roles of a high voltage isolator switch is to make sure the safe isolation of a section of the electrical system during maintenance. This protects workers from electrical hazards.
In dual busbar systems, the high voltage disconnect switch is very important. It is used to switch the load from one busbar to another. This ensures that the system remains operational while maintenance is performed.
The isolator switch also ensures that low-current circuits can be safely disconnected. This is important for protecting sensitive equipment from electrical damage.
The isolator switch creates a physical gap between the electrical components. This ensures that there is no electricity, and the environment is safe for maintenance.
Mistakes are stopped by the lockout/tagout features, which make sure that the switch cannot be closed by accident during maintenance work.
By isolating faulty sections, high voltage isolator switches help minimize disruptions, ensuring the reliability of the overall system.
These switches work alongside circuit breakers to protect equipment from overloads, ensuring safe and smooth operations in electrical systems.
Modern high voltage isolator switches can be integrated with automation systems and controlled remotely. This makes things more efficient and means that they can respond quickly to any problems.
High-voltage isolator switches are very important for the way power systems work. Their primary function of isolating electrical circuits for maintenance ensures worker safety and protects the system from damage. There are different types of switches, so it’s important to choose the right one for the job. Knowing the other types, features, and uses of electrical systems will help you make the right choices to improve safety, reliability, and efficiency.
