An Air Break Switch (ABS) is a vital component in medium to high voltage electrical systems. It plays a key role in isolating electrical circuits, especially in overhead transmission and distribution lines. When engineers or maintenance teams need to safely disconnect a section of the network for repair, testing, or fault clearance, the air break switch ensures that operation happens reliably, visibly, and securely.
In this article, we’ll walk through what an air break switch is, how it works, its internal structure, operational principles, and key benefits. You’ll also understand why ABS units remain the industry standard for outdoor disconnection in HV systems, conforming to essential norms like IEC 62271-102, IEC 62271-1, and ANSI C37.30/C37.32.
In high-voltage (HV) environments, safe circuit isolation is essential. Whether it’s for planned maintenance or emergency fault response, network operators need disconnection points that:
Are clearly visible
Can be safely operated from ground level
Can interrupt small or no-load currents
Comply with international safety and arc extinguishing standards
Air break switches do just that. Unlike enclosed switches or SF6 circuit breakers, an electrical air break switch uses the surrounding atmosphere as its dielectric medium. This simplifies the design while ensuring robust field performance even in adverse outdoor conditions.
An Air Break Switch is a high voltage disconnector designed to open and close electrical circuits in open air. When its contacts separate, an arc forms. The surrounding air serves as the arc extinguishing medium, either naturally or assisted by arc chutes and magnetic blow-out devices.
Air break switches are non-load break devices—they are rated to interrupt:
No-load currents
Small capacitive charging currents
Excitation currents of transformers
They are not designed to interrupt high fault currents, which is why they are often used alongside circuit breakers or fuses.
The core role of an air break switch is visible isolation. This means when the switch is open, the circuit is visibly interrupted—an important safety feature required by IEC 62271-102. Operators can see the air gap and confirm de-energization before beginning maintenance.
Though not built to break large loads, air break switches transfer no-load or lightly loaded circuits, enabling rerouting in power systems.
In distribution networks, especially those with multiple feeders or transformers, ABS allows sectionalizing and switching off idle lines without affecting the main supply.
Many gang operated air break switches come with a mechanically interlocked earthing blade, used to safely ground de-energized lines during maintenance. This grounding feature ensures operator protection from induced or stray voltages.

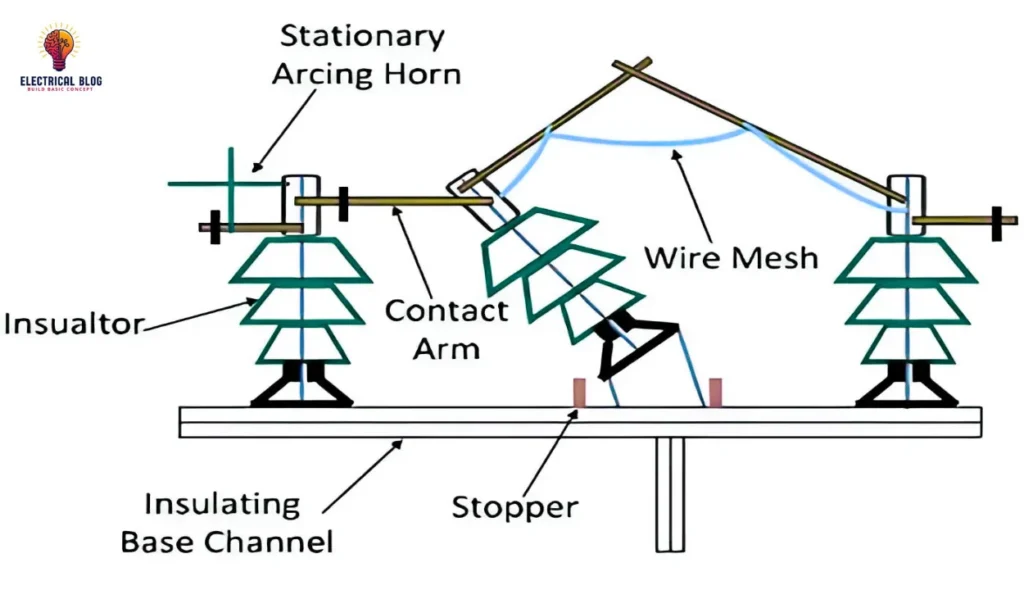

source: Electrical Blogging
Understanding the working principle of an ABS helps engineers evaluate its field performance and limitations.
ABS units are mounted on porcelain or polymeric insulators, maintaining creepage distances per IEC 60071 and supporting the mechanical structure.
The copper or copper-alloy contacts include:
A fixed contact
A rotating or sliding blade
These contacts ensure low resistance conduction and mechanical durability, with some designs rated for over 1000 operation cycles as per Class M1 (IEC 62271-102).
To enhance arc suppression, some designs use:
Arc runners to lengthen the arc
Arc chutes to guide and cool the arc
Magnetic blow-out coils (in magnetic-type ABS)
The goal is to create a long-distance air gap, increasing arc resistance until the current is naturally interrupted.
Depending on voltage and installation:
Manual operation via ground-level handle
Hook-stick actuation (wooden or fiberglass)
Motorized mechanism for remote or SCADA integration
A mechanical interlock ensures the grounding blade only closes when the main contacts are fully open, preventing accidental grounding of live circuits.
When the ABS is operated:
The movable contact starts rotating or sliding away from the fixed contact.
An electrical arc forms due to voltage difference.
This arc bridges the air gap. The arc lengthens along arc horns or runners, increasing its resistance.
Once the arc becomes sufficiently long and cools down, it extinguishes. In AC systems, this typically happens as the current naturally passes zero.
This process is called natural arc extinguishing and works best for:
No-load operations
Excitation current breaking
Light capacitive loads
On closing, the contacts re-engage. Some designs use arcing contacts to absorb the initial surge, protecting the main blade.
ABS units are mechanically simple, making them easy to install and operate, even in remote locations. Fewer moving parts mean lower failure risk.
With air as the medium and well-designed arc-extinguishing devices, air break switches manage arcs safely and predictably in the rated current range.
Operators can see the open-air gap, ensuring clear visual confirmation. With gang operated switches, all three phases open simultaneously, reducing the chance of partial disconnection.
ABS units can be:
Pole-mounted or substation-based
Installed vertically or horizontally
Designed to meet 12kV to 36kV voltage ranges
Customized with porcelain, polymer, or cycloaliphatic insulators
They also operate reliably in harsh outdoor conditions, including high altitudes, polluted areas, and marine environments.
An Air Break Switch is not just a switch—it’s a safety barrier, a maintenance enabler, and a strategic control point in high-voltage systems.
Built in compliance with global standards like IEC 62271-1, IEC 62271-102, and ANSI C37.30, ABS units deliver visible, reliable, and cost-effective isolation for utilities and industries worldwide.
Whether you’re working in a 33kV rural feeder or a 12kV urban substation, the air break switch disconnector remains a trusted solution for safe, secure, and efficient power system operation.
