As power systems continue to evolve towards greater intelligence and automation, the Smart Auto Recloser has become an indispensable device in modern distribution networks. It not only enhances supply reliability but also significantly reduces outage durations, playing a crucial role in maintaining grid stability and safety. This article explains what a smart auto recloser is, how it works, its core functions, and key selection criteria — with a special focus on the GTAR Smart Auto Recloser by GOTO Electric Co., Ltd., helping you make an informed choice.
A smart auto recloser is an intelligent switching device used in medium- to high-voltage distribution systems that can automatically detect faults, interrupt the circuit, and reclose to restore supply. It is primarily used to quickly isolate temporary faults such as transient short circuits, minimizing customer outage time.
Unlike traditional mechanical reclosers, smart auto reclosers incorporate microprocessor-based protection and communication modules, supporting remote monitoring and intelligent control, meeting the demands of modern smart grids for data acquisition and automation.
The smart auto recloser uses an embedded microprocessor controller to continuously monitor line current, voltage, and other grid parameters. Upon detecting an abnormal fault (e.g., short circuit, overcurrent, or earth fault), it performs the following sequence:
Fault Detection and Decision
The controller analyzes the fault type and severity based on programmable protection logic, deciding whether to trip the breaker.
Circuit Interruption
The mechanical interrupter opens the circuit to isolate the fault and protect the network.
Automatic Reclosing Attempt
After a preset time delay, the controller automatically attempts to reclose the circuit to restore power if the fault is cleared.
Multiple Reclosing Attempts
If the fault persists, the device can attempt reclosing multiple times before locking out and signaling the fault to the control center.
Remote Monitoring and Control
Through supported communication protocols, operators can remotely monitor device status, control operations, and retrieve fault logs in real time.
High-precision fault detection and fast operation
Comprehensive protection functions: Overcurrent (OC), Earth Fault (EF), Cold Load Pickup, Reclosing Time Delays, Fault Phase Blocking, Fault Location Indication
Programmable reclosing logic: configurable reclosing attempts and delay settings
Communication support: Compatible with IEC 60870-5-101/104, DNP3, Modbus protocols
SCADA integration: Enables real-time telemetry, remote control, and event logging
Robust environmental adaptability: Suitable for harsh climates and challenging installation environments

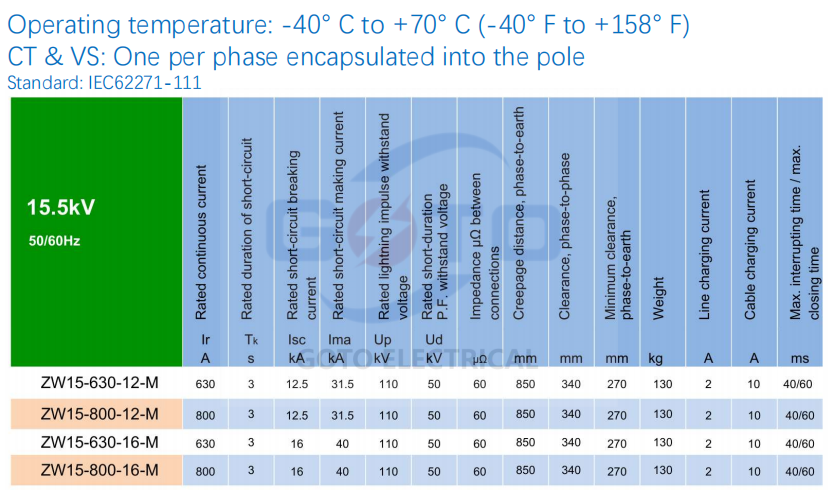

Rated voltage and current compatibility
Choose a device rated for your distribution system voltage level (e.g., 11kV, 20kV, 35kV) and load current.
Protection function completeness
Ensure the device supports necessary protection functions and programmable features to match system requirements.
Communication protocol compatibility
Select equipment that supports your grid’s automation protocols (IEC 60870-5-104, DNP3, etc.) for seamless integration.
Environmental and installation suitability
Verify device protection ratings and environmental resilience for local climate and site conditions.
Brand reputation and after-sales service
Opt for mature, certified manufacturers with strong technical support and global service networks.

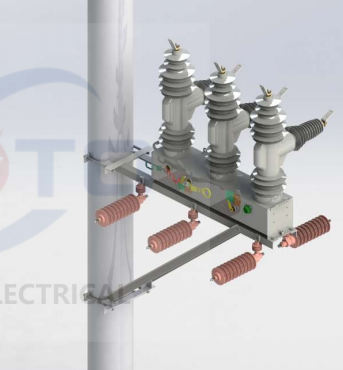

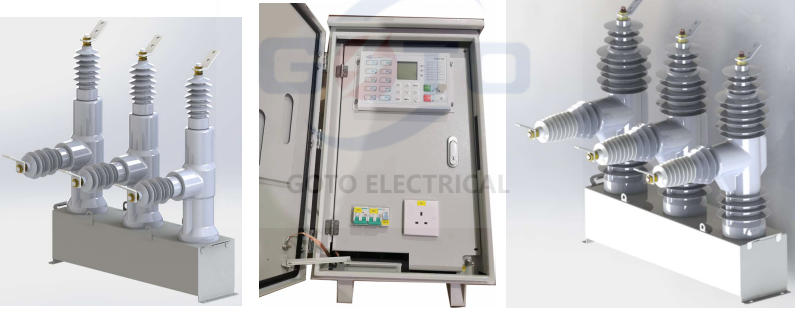

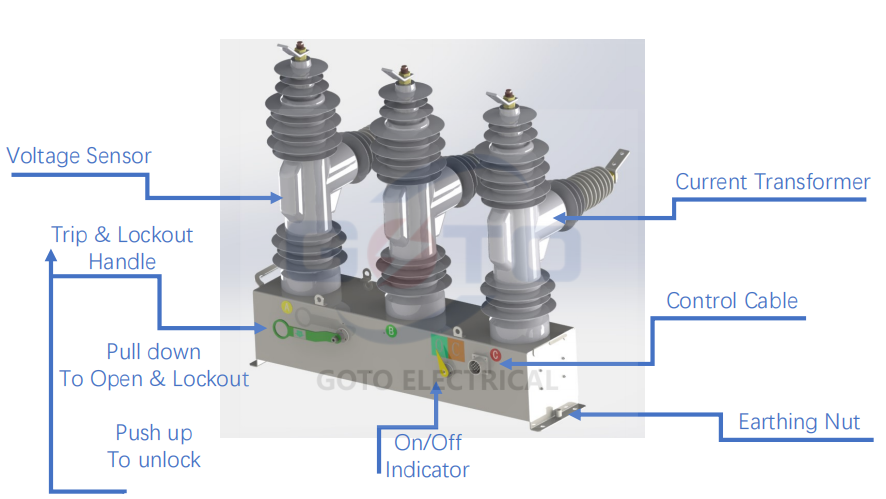

The GTAR Smart Auto Recloser developed by GOTO Electric Co., Ltd. offers the following advantages:
Full compliance with IEC 62271 international standards ensures stable and reliable performance
Integrated multi-function protection and programmable reclosing logic
Supports IEC 60870-5-101/104, DNP3, GSM/GPRS/4G/5G communication protocols for SCADA integration

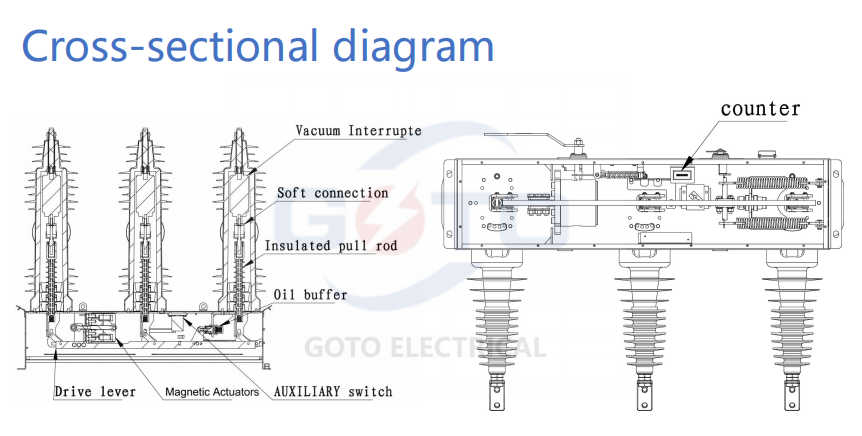

Modular design with vacuum interrupter technology for long service life and low maintenance
Thorough type testing and certification by third-party authoritative labs
GTAR reclosers have been successfully deployed in Southeast Asia, Africa, Latin America, and other regions, empowering utilities to enhance automation and supply reliability.
Smart auto reclosers are vital components of modern intelligent distribution networks, greatly improving grid automation and fault self-recovery capabilities. When selecting a device, consider electrical ratings, protection functions, communication features, and environmental suitability. With its advanced technology and proven track record, the GTAR Smart Auto Recloser is a reliable and high-performance solution for your grid needs.
