As the global demand for reliable and resilient power transmission increases, the components that support and insulate overhead transmission lines are more critical than ever. Among them, the Cross-arm Insulator stands out as a key player in ensuring both mechanical stability and electrical insulation in harsh environments.
This article offers a deep technical insight into the Composite Cross-arm Insulator, explaining its structure, function, advantages over traditional ceramic insulators, and how to choose the right insulator for high-voltage applications. Whether you’re an electrical design engineer or a power utility specialist, understanding the load dynamics, structural integrity, and material science behind modern cross-arm insulators is essential.
A Cross-arm Insulator is an essential insulating and mechanical support device mounted on the cross-arms of transmission towers. It isolates live conductors from grounded tower structures while withstanding mechanical loads from wind, ice, and line tension.
Modern insulators are increasingly made using Fiber Reinforced Polymer (FRP) cores and silicone rubber sheaths—commonly referred to as Composite Cross-arm Insulators—offering enhanced strength-to-weight ratios and pollution resistance compared to legacy porcelain types.
The primary roles of a cross-arm insulator include:
Electrical Insulation: Prevent leakage current and ensure phase-to-ground isolation.
Mechanical Support: Bears significant cross-arm mechanical load under wind and tension forces.
Overhead line safety: Enhance safety margins for critical lines, especially in polluted or high-altitude areas.
Attachment Interface: Secure conductors through cross-arm insulator pins, maintaining proper clearance and support geometry.

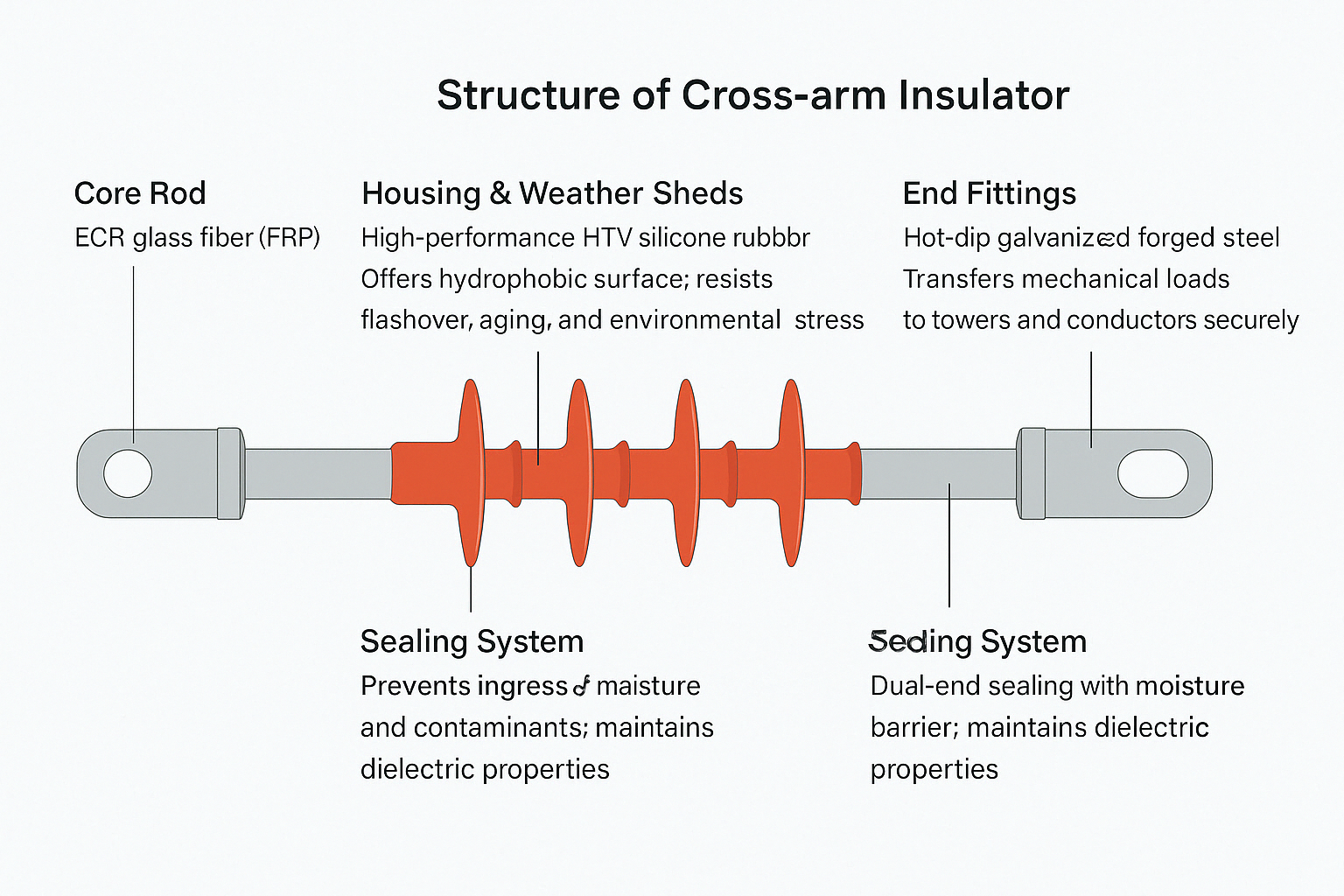

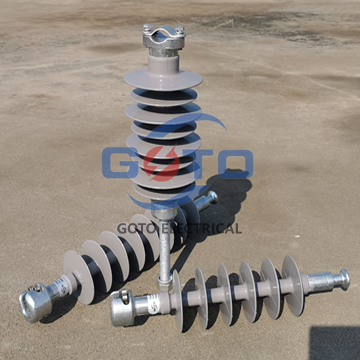

A composite cross-arm insulator typically consists of four core components, each engineered to ensure structural integrity, electrical insulation, and long-term field reliability in overhead transmission systems:
| Component | Material | Function |
| Core Rod | ECR glass fiber (FRP) | Provides axial load-bearing capacity; offers high tensile strength |
| Housing & Weather Sheds | High-performance HTV silicone rubber | Offers a hydrophobic surface; resists flashover, aging, and environmental stress |
| End Fittings | Hot-dip galvanized forged steel | Transfers mechanical loads to towers and conductors securely |
| Sealing System | Dual-end sealing with a moisture barrier | Prevents ingress of moisture and contaminants; maintains dielectric properties |
This composite architecture enhances both transverse load performance and overall environmental durability. The use of fiber-reinforced polymers and hydrophobic elastomers ensures that the insulator remains stable under high mechanical stress and in polluted, humid, or UV-intensive environments.

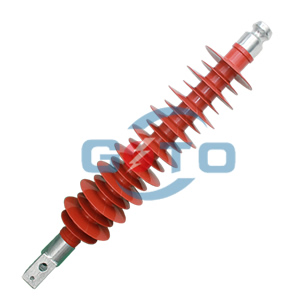

Key electrical and mechanical performance indicators of GOTO’s Composite Cross-arm Insulator:
Rated Voltage: 10kV–220kV
Creepage Distance: ≥25 mm/kV (designed for heavy pollution zones)
Mechanical Load Capacity: 70kN–160kN (Cross-arm moment capacity and vertical tension certified)
Power Frequency Withstand: ≥42kV（1min
Lightning Impulse Withstand: ≥110kV–195kV
Operating Temperature: -40°C to +60°C
Standards Compliance: Fully conforms to IEC 61109
According to IEC 61109, the required mechanical load test for composite insulators must exceed 70% of the specified tensile rating (source: IEC official documentation).
The high hydrophobicity of silicone sheds reduces leakage current, improving long-term insulator durability and safety.
Cross-arm insulators are classified by:
Material: Ceramic, glass, or composite materials
Voltage Range: Low (≤35kV), Medium (66–110kV), High (110–220kV)
Mounting Style: Vertical, horizontal, or inclined
Application: Distribution vs. Overhead transmission line insulator
The most modern and versatile is the Composite Cross-arm Insulator, offering the best combination of mechanical performance, environmental resistance, and ease of installation.
GOTO’s cross-arm insulators are widely used in:
High-voltage overhead transmission lines
Urban and rural distribution poles
Industrial substations
Harsh environments: coastal, alpine, desert, and high-pollution areas
Their performance under high humidity and heavy pollution has made them preferred components for enhancing overhead transmission line safety and reducing maintenance intervals.
Background
In a coastal transmission project exposed to salt fog, humidity, and industrial pollution, traditional ceramic insulators failed to maintain performance, requiring frequent cleaning and posing flashover risks.
Solution
GOTO’s composite cross-arm insulators were selected for their hydrophobic insulation surface, corrosion-resistant structure, and strong mechanical load capacity. Built with an FRP core and silicone rubber housing, they offer reliable operation in salt-laden, high-humidity environments.
Results
Improved anti-pollution performance reduced leakage current and flashover incidents.
Corrosion-resistant materials extend service life in coastal and industrial zones.
Lightweight design simplifies installation on power towers.
Ensured stable operation of the grid under harsh environmental conditions.
When selecting a cross-arm insulator for engineering applications, consider the following:
Rated Voltage & Creepage Distance: Match system voltage and environmental pollution levels.
Load Requirements: Ensure it meets the load capacity of the cross-arm, including tensile and bending forces.
Cross-arm Attachment Points: Confirm compatibility with tower hardware and cross-arm insulator pin interfaces.
Material Selection: Composite materials are superior in polluted and seismic areas.
Standard Compliance: Insulators must meet IEC 61109 and relevant local standards.
Grading Devices: For insulators on EHV lines, consider adding grading rings to balance voltage distribution.

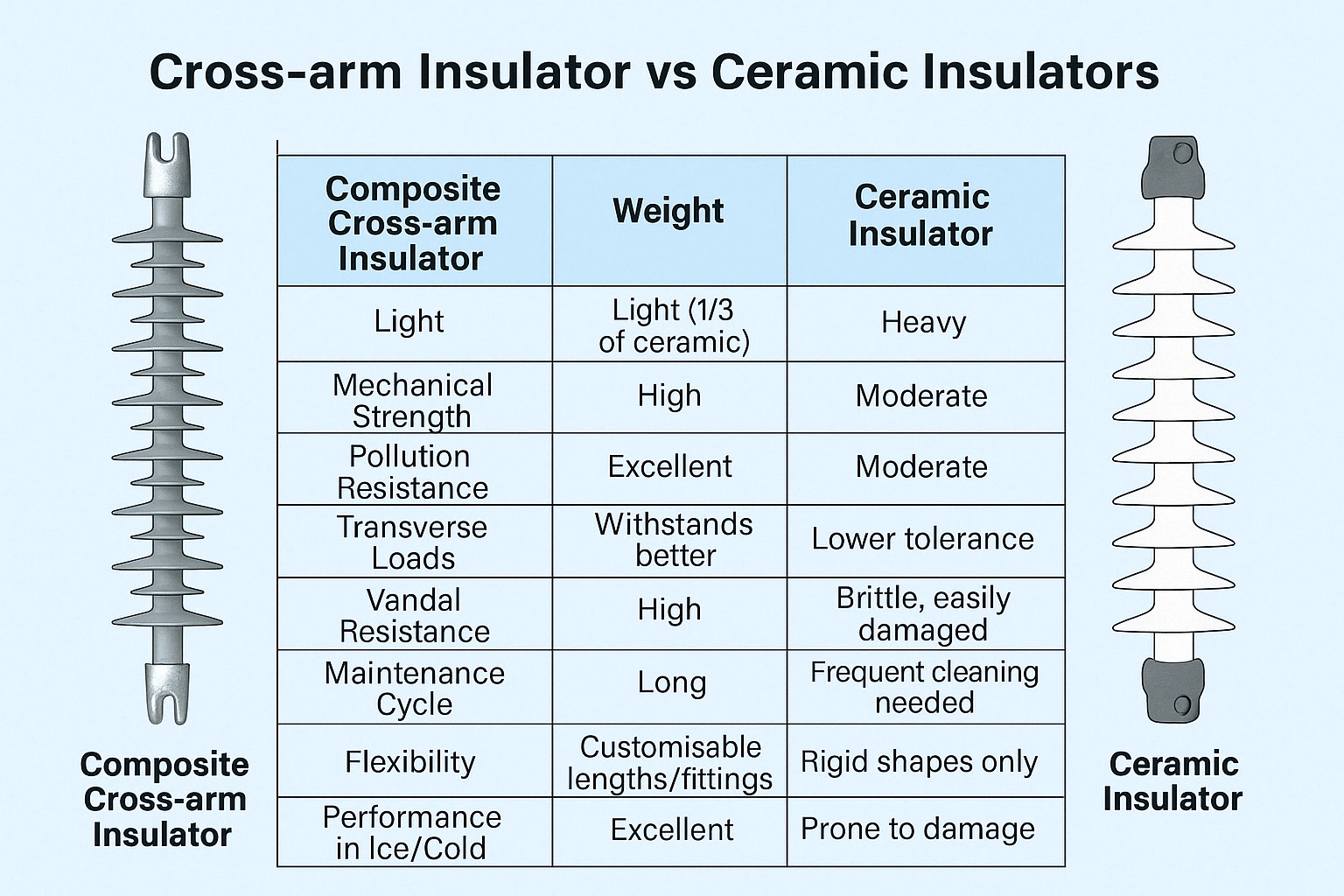

| Feature | Composite Cross-arm Insulator | Ceramic Insulator |
| Weight | Light (1/3 of ceramic) | Heavy |
| Mechanical Strength | High | Moderate |
| Pollution Resistance | Excellent | Moderate |
| Transverse Loads | Withstands better | Lower tolerance |
| Vandal Resistance | High | Brittle, easily damaged |
| Maintenance Cycle | Long | Frequent cleaning needed |
| Flexibility | Customisable lengths/fittings | Rigid shapes only |
| Performance in Ice/Cold | Excellent | Prone to damage |
The shift to composite materials offers better grid reliability and lowers lifecycle costs, especially for overhead line insulator applications in challenging environments.
A cross-arm insulator is critical in overhead transmission line systems, designed to support and electrically isolate conductors from utility poles or towers. Modern composite cross-arm insulators, made from fiber-reinforced polymers and silicone rubber, offer superior mechanical strength, weather resistance, and reduced maintenance compared to traditional porcelain or glass insulators.
Engineered to meet stringent international standards such as IEC 61109, these polymeric insulators for cross-arm applications provide utility companies and EPC engineers with dependable solutions that reduce maintenance, improve uptime, and ensure safety across overhead transmission lines.
Whether you’re designing a new grid or retrofitting an aging line, choosing the right cross-arm insulator is a high-stakes engineering decision—one that should prioritise durability, compliance, and long-term value.
