If you only have 30 seconds: a Three Phase Auto Recloser trips and recloses all three phases together; a Single Phase Auto Recloser trips and recloses only the faulted phase for single-line-to-ground faults, keeping the healthy phases energized. That one design choice drives differences in stability, continuity, dead time, secondary-arc handling, settings complexity, coordination, and lifetime cost. This article explains those technical trade-offs in plain, engineering-grade language so you can choose the right Auto Recloser for your feeder and protection philosophy.
Why this matters: most distribution faults are temporary. A well-configured Automatic Recloser Switch interrupts that fault, evaluates the line, and restores service automatically. Done right, it improves reliability and reduces truck rolls without compromising equipment life or protection selectivity. Modern single-phase self-powered designs even eliminate routine maintenance while adding SCADA, logs, and programmable curves.
An Automatic Circuit Recloser (often shortened to Auto Recloser) is a medium-voltage protection switch that opens on a fault, waits a set interval, and recloses to test the line. If the fault remains after the programmed shots, it locks out and isolates the section. This trip–reclose logic clears most temporary faults (lightning, vegetation, wildlife contact) without extended outages, boosting feeder reliability.
Modern Automatic Recloser Switch designs use microprocessor controls with programmable time–current curves, event/oscillography records, and SCADA connectivity (e.g., DNP3/IEC 60870). Many single-phase models are self-powered and battery-free, reducing routine maintenance. Auto Reclosers are supplied in single-phase and three-phase variants to match distribution topologies up to typical MV classes.
For a quick primer and complementary definitions, see our related post “What Is an Auto Recloser?”
Auto Recloser
Before we dive into details, one big picture takeaway:
Three Phase Auto Recloser (three-pole trip/reclose): best when you must avoid prolonged single-phasing of sensitive three-phase loads and prefer simpler settings/coordination.
Single Phase Auto Recloser (single-pole trip/reclose for SLG, three-pole for multi-phase faults): best when your system grounding and line geometry support secondary-arc extinction and you want maximum continuity and stability during the open-phase interval. Adaptive logic can minimize dead time and prevent mis-reclose into permanent faults.
Three-phase devices open and close all poles simultaneously for any fault, by design.
Single-phase devices open only the faulted pole for single-line-to-ground faults; for multi-phase faults they trip three-pole.
This seemingly simple difference changes every downstream consideration: detection logic, reclose supervision, and coordination philosophy.
Single-pole reclosing is highly dependent on system grounding and line design because secondary-arc behavior governs success. On compensated or long lines, utilities add neutral grounding reactors (NGR) to reduce secondary-arc current and recovery voltage so the arc self-extinguishes within the dead time. Engineering notes and field practice show sizing NGR with the shunt compensation degree, then verifying extinction times with EMT simulations.
With single-pole trip, two healthy phases remain in service. That helps transient stability and lowers the disturbance to voltage profile and reactive power flow. Newer single-phase self-powered reclosers are explicitly promoted to improve reliability indices by eliminating many sustained and momentary outages on laterals and feeders.
Because the healthy phases stay energized during the open-phase interval, Single Phase Auto Recloser designs directly support better continuity: fewer customers see a full three-phase outage for a temporary SLG event. Vendor and utility literature stresses momentary-outage elimination and isolation of permanent faults as the core value proposition for these devices, which in practice favors SAIDI/SAIFI.
A single-phase trip leaves an energized two-phase system that capacitively and inductively couples to the open conductor. That coupling sustains a secondary arc and imposes a recovery voltage across the fault path. Reclosing must wait until the arc is fully extinguished (and air de-ionized). In traditional practice, single-pole dead time is typically around 1 s for SLG faults, while three-pole dead time for multi-phase faults is often ~3 s. Modern SAE/SAED (secondary-arc extinction detection) schemes supervise the close signal and can minimize dead time by issuing reclose as soon as the arc disappears—avoiding mis-reclose into a permanent fault.
Open-phase conditions produce a rising recovery voltage across the extinguished gap. Its magnitude and rate of rise depend on line capacitances and compensation. Managing this stress is central to insulation coordination and to the success of the next close attempt. In single-pole schemes, NGR and line-end reactors are used to reduce recovery voltage and secondary-arc current—improving the probability of a successful reclose within the allowed dead time.
Single-pole schemes must detect the faulted phase, supervise reclosing with SAED, and prevent misoperations caused by the open-phase unbalance. During an SPO (single-pole open) interval, unbalanced voltages and currents can upset distance and ground elements unless the relay blocks or desensitizes those elements and adapts polarization. Proper logic addresses these effects explicitly.
Both designs support multiple “shots” with configurable timing. The practical difference is who gets the sequence: three-pole (all phases) versus the single faulted pole. Modern controllers expose shot count, delays, and curve selection through software—and, increasingly, through a browser interface without proprietary dongles—while recording events for post-fault analysis and audit.
Coordination is simpler with three-pole operation because everything steps together. Single-pole coordination requires extra care: upstream distance elements, downline fuses, and feeder reclosers must stay selective under open-phase unbalance. The good news is that programmable electronic TCCs do not drift with age, and modern reclosers can emulate or coordinate against legacy fuse TCCs to maintain selectivity over time.

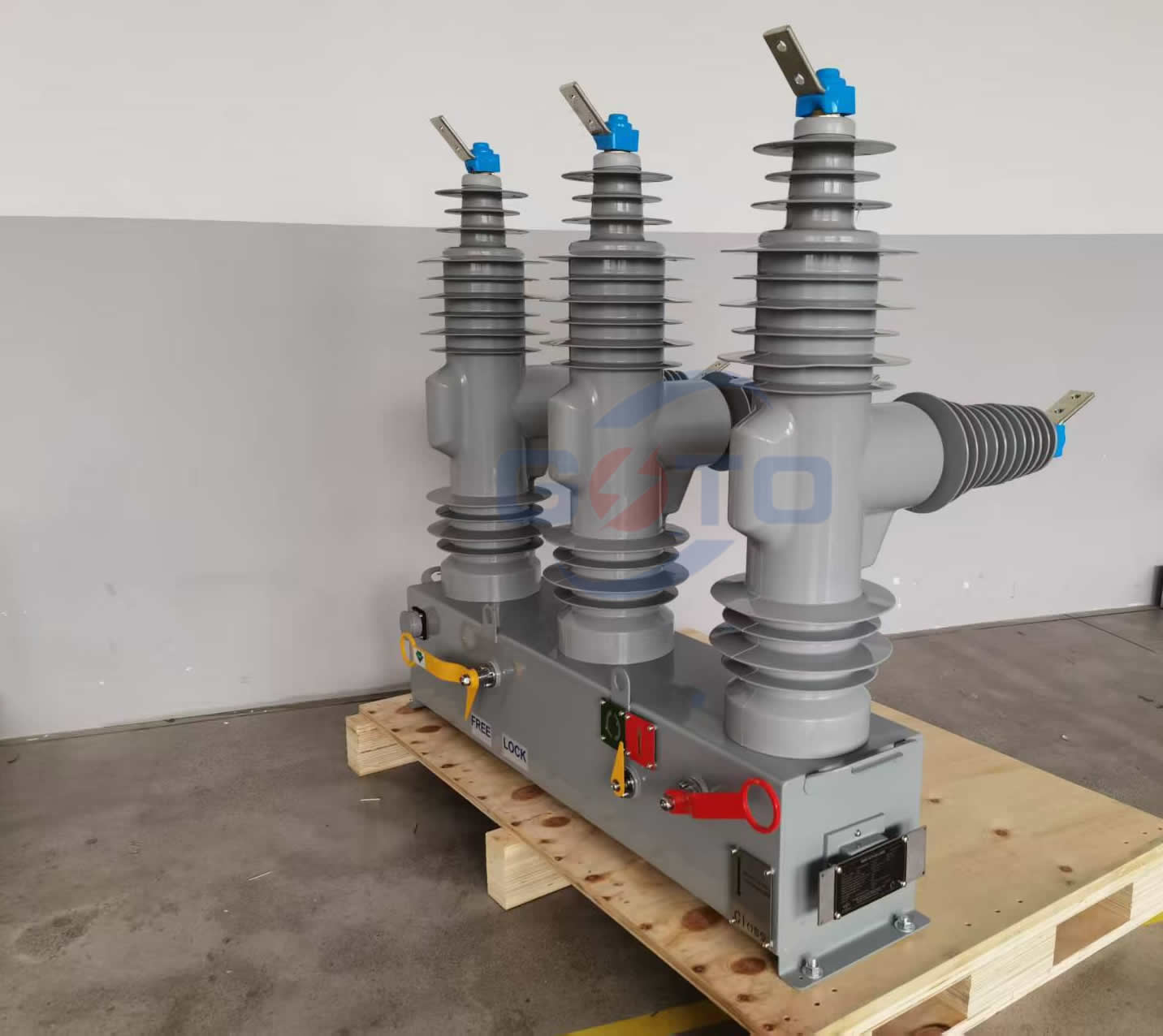

What ships with a Three Phase Auto Recloser set? In our pole-mounted vacuum package, the three-phase circuit breaker unit comes with an electronic controller (GTK-43), grounding hardware, a standard wiring harness (e.g., 26-pin, 6 m), a manual operating lever, and insulating caps. This aligns with modern practice where the controller, wiring, and visible accessories are delivered as an engineered kit for fast deployment and commissioning. Optional accessories typically include potential transformers (PTs) for auxiliary power and measurement and surge arresters for over-voltage protection; PT burden can be specified (50–500 VA, oil-immersed or dry).
Single-pole performance improves markedly when the line is designed for secondary-arc extinction. Where lines are compensated, adding a neutral reactor to the shunt-reactor bank reduces both secondary-arc current and recovery voltage; on uncompensated lines, high-speed grounding switches and carefully chosen dead time are also used to ensure success.
Single Phase Auto Recloser: lateral circuits and long rural feeders where temporary SLG faults dominate and continuity is prized; widely used as a targeted upgrade over fused cutouts to eliminate momentary outages, add remote control, and avoid truck rolls.
Three Phase Auto Recloser: main three-phase feeders and load pockets where single-phasing of motors must be strictly avoided and system operators prefer three-pole lockout for permanent faults.
Many utilities also deploy single-phase self-powered units on three-phase laterals as a cost-effective alternative to large three-phase reclosers, with SCADA and triple-single operating modes available in modern controllers.
Risks differ by mode. In single-pole operation, open-phase unbalance can disturb protection elements if not handled (e.g., distance/ground elements must be blocked or re-polarized). Reclosing too early—before arc extinction—can re-ignite the fault (secondary-arc + high recovery voltage). In three-pole schemes, the risk is mostly economic and operational—more customers see an outage for a temporary SLG—and mechanical duty on the interrupter may be higher due to longer dead times and full-phase operations. Modern SAED supervision mitigates the single-pole risk by issuing the close command only after extinction indicators are met.
Cost is not only capex. The maintenance profile of self-powered vacuum reclosers has changed the economics: compared with legacy oil-filled hydraulic reclosers (onsite and shop maintenance every few years), maintenance-free designs with solid dielectric insulation and no batteries can avoid those recurring costs entirely. A representative comparison shows ≈ $7,000 lifetime maintenance for hydraulic units vs. $0 for self-powered vacuum designs (truck rolls, oil care, shop work). Browser-based configuration and local Wi-Fi further reduce field time while providing rich data for post-fault analysis.
Use this quick, engineering-first checklist to map your system to the right choice:
System grounding & line design
Effectively grounded system with realistic prospects for secondary-arc extinction (short/medium lines, or compensated with NGR)? → Prefer Single Phase Auto Recloser (SPS/SPO capability).
Weak grounding, very long and highly capacitive lines without feasible arc control, or strict prohibition on single-phasing? → Prefer Three Phase Auto Recloser.
Reliability and continuity objectives
KPI focus on eliminating momentary outages, shrinking sustained outage counts, and improving lateral performance? → Single-phase self-powered reclosers on taps and hotspots deliver outsized benefits.
KPI focus on avoiding single-phasing of motor loads in dense industrial pockets? → Three-phase.
Protection & settings complexity tolerance
Organization ready to manage SAED, open-phase blocking/desensitizing, and more involved coordination? → Single-phase (greater engineering payoff, more moving parts).
Prefer simpler settings and familiar coordination curves? → Three-phase.
Dead time window & arc control
Can you afford ~1 s open-phase intervals for SLG and ~3 s for three-pole events—and do you want adaptive closing when the arc dies out? → Ensure your controller supports SAE/SAED-supervised reclosing.
Lifecycle economics & field practice
Want to remove periodic oil/battery maintenance and reduce truck rolls? → Favor self-powered vacuum designs with browser-based configuration and data logging.
Integration and deployment speed
Prefer a packaged kit with controller, harness, manual lever, and visible accessories for rapid installation? → Evaluate pole-mounted vacuum recloser kits with electronic controllers (e.g., GTK-43) and optional PT/arrester bundles.
Pro tip: document your assumptions (grounding method, compensation degree, expected arc current, line length, allowable dead time) in a one-page “reclose readiness” sheet. It makes relay logic reviews and protection audits faster—and it keeps field crews, planning, and protection engineering aligned.
Three Phase Auto Recloser and Single Phase Auto Recloser solve the same problem in different ways. Three-phase operation is simpler to set and coordinate and avoids extended single-phasing of three-phase loads. Single-phase operation, backed by sound grounding and secondary-arc management, preserves continuity, improves stability, and can materially improve reliability indices on feeders and laterals. Modern Automatic Circuit Recloser platforms add the missing pieces—SAED, programmable TCCs, event logs, SCADA, and even battery-free, self-powered operation—to make both philosophies safer and more economical to run. If your line can extinguish the secondary arc and your protection team can manage open-phase logic, single-phase is often the better performer; otherwise, a robust three-phase recloser remains the right tool for the job.
