In modern power distribution networks, improving reliability and minimising downtime are top priorities. Overhead distribution lines are particularly prone to transient faults, such as lightning strikes, tree branches, or animal contact, which often resolve themselves. Studies indicate that up to 80% of faults in overhead networks are temporary. Auto Reclosers, also known as Automatic Circuit Reclosers (ACRs), are designed to address these challenges. They can detect faults, isolate affected segments, and automatically attempt reclosing, restoring power without human intervention. This blog explores the working principle, application, benefits, selection criteria, and implementation considerations for Auto Reclosers, providing power engineers and grid operators with comprehensive guidance.
Understanding Fault Types
Power distribution faults can generally be categorized into three types:
The design philosophy of Auto Reclosers is based on the high likelihood of transient or semi-permanent faults, employing a “detect, isolate, attempt recovery” approach to minimize downtime.
Typical Operation Sequence
Fault Detection: The Auto Recloser monitors current and voltage continuously. When abnormal current surges or fault conditions are detected, it trips to isolate the faulty section.
Dead Time: After tripping, the device waits for a pre-programmed dead time, allowing transient faults to self-clear and arcs to extinguish safely.
Automatic Reclosing: If the fault has cleared, the Auto Recloser recloses the circuit automatically. If the fault persists, the device may attempt multiple recloses or eventually lock out.
Lockout Mode: After repeated unsuccessful attempts, the device locks to prevent equipment damage and indicates the need for human inspection.
Dead Time: Critical for ensuring the arc has extinguished before reclosing. Too short a dead time may cause equipment stress or unsuccessful reclosing.
Reclose Interval: The time between successive recloses; must balance system recovery speed and equipment protection.
Number of Shots (Reclose Attempts): Most Auto Reclosers allow 2–4 reclose attempts before locking out permanently.
Current & Voltage Sensing Accuracy: High-precision sensing ensures accurate fault detection without nuisance tripping.
Environmental Tolerance: Outdoor Auto Reclosers are built to withstand UV, moisture, extreme temperatures, and pollution.

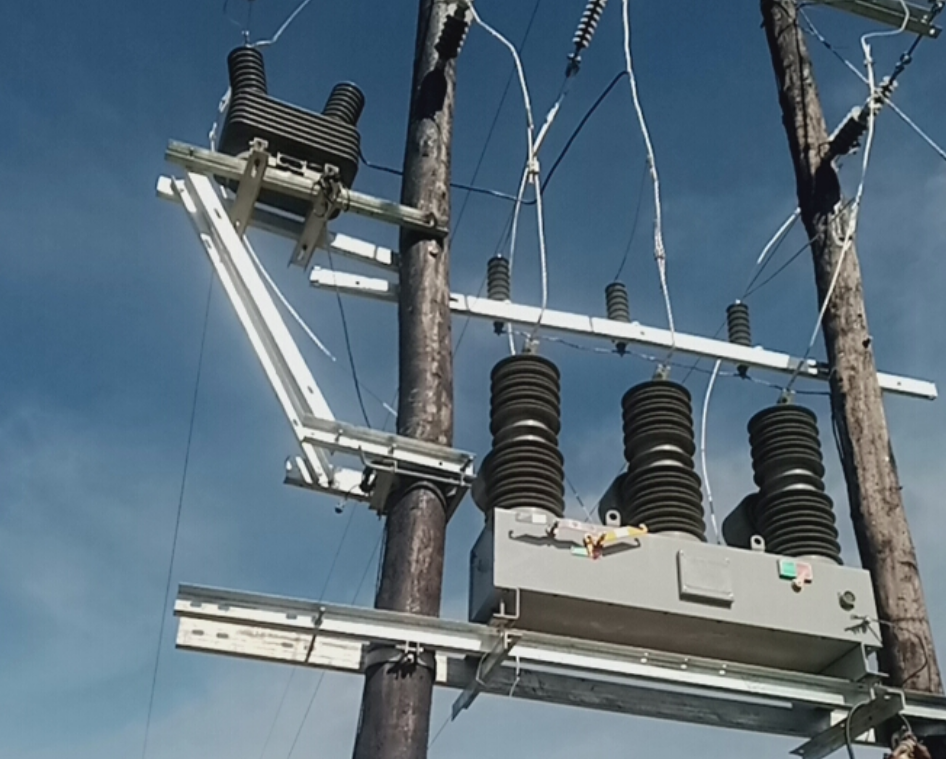

Outdoor High Voltage Vacuum Circuit Breaker
Since most distribution faults are transient, Auto Reclosers restore service within seconds, dramatically reducing outage duration for end-users. This is critical for utilities aiming to meet stringent reliability standards such as SAIDI and SAIFI.
By automating fault detection, isolation, and reclosing, Auto Reclosers minimize the need for emergency field crews. Utilities can optimize labor costs and reduce truck rolls while maintaining reliable service.
Modern Auto Reclosers come equipped with communication protocols such as DNP3, Modbus, and IEC 60870-5-101/104. This allows full integration into SCADA systems, enabling real-time monitoring, remote control, and data-driven predictive maintenance.
Auto Reclosers ensure that only the faulted section is isolated, preserving power to unaffected areas. This selective isolation reduces cascading outages and prevents upstream protective devices from unnecessarily tripping. Lockout modes prevent repeated stress on critical equipment, extending equipment life and ensuring safety.
Designed for harsh conditions, Auto Reclosers utilize solid epoxy insulation, vacuum or SF6 interrupters, and magnetic actuators, ensuring long-term performance in extreme weather, pollution, or high UV exposure areas.
Select devices based on system voltage and phase configuration. For instance, 12 kV, 27 kV, and 38 kV systems may require different models, and choices between single-phase or three-phase Auto Reclosers depend on network topology and reliability requirements.
Prioritize devices that support SCADA integration and remote monitoring, providing operational teams with fault records, diagnostic data, and remote control capabilities.
Ensure that Auto Reclosers are coordinated with downstream breakers, sectionalizers, and fuses to maintain system selectivity. Improper coordination can result in unnecessary trips or failure to isolate faulted sections.
While Auto Reclosers are largely maintenance-free, periodic testing of functional operations, control logic, and communication interfaces is essential to ensure reliability during faults.
What is an Auto Recloser and how does it work?
An Auto Recloser is an automatic circuit breaker used in power distribution networks. It detects faults, isolates the affected section, and automatically recloses to restore power if the fault is temporary, reducing downtime without manual intervention.
Auto Reclosers handle transient faults (e.g., lightning or tree contact), semi-permanent faults (persistent arcs or minor contact issues), and permanent faults. Temporary faults are automatically cleared, while permanent faults lock the device until repaired.
Key benefits include:
Selection depends on system voltage (e.g., 12 kV, 27 kV, 38 kV), phase configuration (single-phase or three-phase), reclose strategy, communication needs (DNP3, Modbus, IEC 60870), and coordination with downstream protective devices.
Auto Reclosers are largely maintenance-free but require periodic testing for:
This ensures reliability during faults and extends equipment lifespan.
Auto Reclosers are a cornerstone of modern power distribution, enabling utilities to achieve higher reliability, lower operational costs, and faster fault recovery. By understanding their working principles, benefits, and implementation requirements, power system engineers can optimize network performance and integrate these devices effectively into smart grid systems. As utilities increasingly embrace automation and remote monitoring, Auto Reclosers with advanced communication capabilities will play a pivotal role in future-proofing distribution networks. Strategic planning, correct selection, and careful coordination ensure that Auto Reclosers deliver maximum value while safeguarding both equipment and end-users. Contact Us for more details.
